Dual Frequency Safoa a Wɔde Di Dwuma

Dual Frequency Safoa a Wɔde Di Dwuma

Wɔasi-wɔ Chips mu

Chips abien a ɛde ne ho koraa:

• HF chip: Nokware NXP NTAG213, 144 bytes ɔdefo-kyerɛw memory
• LF chip: EM4100 / TK4100 a ɛne no hyia, akenkan-nko, wɔasiesie kaad nɔma wɔ adwumayɛbea (worentumi nsakra akyiri yi)

HF yɛ adwuma wɔ 13.56 MHz, LF yɛ adwuma wɔ 125 kHz. Chips abien no nyinaa yɛ adwuma koraa wɔ ɔkwan soronko so, zero interference.

Dɛn Nti na Wopaw Dual-Frequency?

Adetɔfo pii tu mmirika kɔ saa ɔhaw pɔtee yi mu: adwumakuw no yɛɛ foforo ara kwa kɔɔ IC card access control so, nanso adwumayɛfo adan a wɔda mu no da so ara wɔ ID nhyehyɛe dedaw no so. Wɔn baanu no nkasa nkyerɛ wɔn ho wɔn ho. Yɛn dual-frequency fobs no mu baako di apon mmienu no nyinaa ho dwuma a tag baako - enhia sɛ wode card mmienu bɛkɔ. Agyapadeɛ-management system integrators tɔ wɔn wɔ dodoɔ mu nso ɛfiri sɛ adan taa nya akenkanfoɔ a wɔde mfeɛ a ɛda ntam a ɛnyɛ pɛ.

Nneɛma & Ɔdansi Su

• Shell: Brand-ABS foforo (ɛnyɛ ade a wɔasan de adi dwuma), a ɛyɛ den na ɛyɛ mmerɛw, renpaapae wɔ wim tebea a ɛyɛ nwini mu
• Encapsulation: Coils a wɔde si hɔ → wɔde epoxy resin ahyɛ mu ma → wɔasa no yare → ultrasonic welded a wɔato mu. Ɛyɛ den yiye.

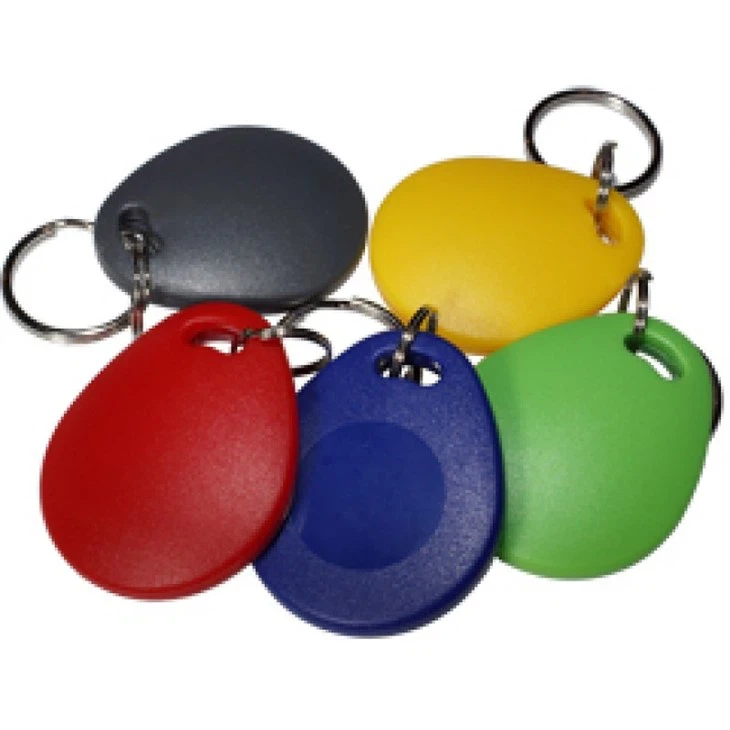

Kɔla ahorow

Black bere nyinaa wɔ stock (ɛkɔ akyiri koraa no, ɛyɛ nea agye din sen biara). Blue, red, green, yellow nso ayɛ krado sɛ wɔde bɛmena. Kɔla foforo biara: MOQ 500 pcs.

Nneɛma a Wobɛpaw sɛ Wotintim

• Silk-screen (ɛyɛ mmerɛw, ɛyɛ pɛpɛɛpɛ ma logo/nsɛm a ɛnyɛ den)
• Laser etching (super sharp mpo wɔ nkyerɛwee nketewa so, ɛnsɛe da)
• UV full-kɔla tintim (mfonini, gradients, ne nea ɛkeka ho. - bo a ɛkorɔn)

Size & Nneɛma a Ɛho Hia

37 mm × 31 mm × 5.5 mm

Tokuru no ntwemu ≈ 4 mm - fata hama anaa safe biara a ɛyɛ gyinapɛn

Mu duru ≈ 5 g biara, emu yɛ hare yiye

Mmɔdemmɔ

• Akenkan/kyerɛw kyinhyia: HF > mpɛn 100,000. LF kenkan-nko=no wear
• Kenkan kwan: Wɔde ACR122U (HF) asɔ ahwɛ: ɔbotan-a ɛyɛ den bere a woka, ɛda so ara yɛ adwuma 3-4 cm bere dodow no ara. LF a ID akenkanfo a wɔyɛ daa no wɔ akyirikyiri a ɛte saa ara
• Ɔhyew: -25℃freezer nnɔnhwerew 4 & 70℃oven nnɔnhwerew 2 - abien no nyinaa twaam
• Nsu a ɛko tia: Wɔde gu tap nsu mu nnɔnhwerew 24, popa ma ɛyow, ɛyɛ adwuma pɛpɛɛpɛ. Mfa asuguare anaasɛ nnyɛ hyew-spring ne no.
•

Nneɛma a wɔde kyekyere nneɛma

• Loose: 100 pcs wɔ zip-lock bag biara mu
• Carton a ɛyɛ ma: 2,000 pcs (nkotoku 20), anum-layer corrugated adaka ≈ 38 × 20 × 28 cm, ne nyinaa mu duru ~12 kg
• Custom kɔla adaka / ankorankoro packaging wɔ hɔ (ɛka foforo) .

Bere a Wɔde Di Dwuma

• Stock colors/no logo: Fa mena wɔ nnafua 3 akyi wɔ sika a wɔatua akyi
• Silk-screen logo: nnafua 7-10 wɔ sikatua akyi
• Amanne kɔla anaa amanne nsusuwii (nkuku foforo): nnafua 25-30 + nkuku ho ka

Sikatua

• Nneɛma nketenkete a wɔkra: PayPal (wotua sika no) .
• Big orders: T / T, 30 % deposit, sika a aka ansa na wɔde amena
• Alibaba Trade Assurance akwaaba - adetɔfo ahobammɔ a edi mũ

Suhyɛn so dwumadie

Default international》(DHL/FedEx/UPS - yɛpaw nea ne bo yɛ mmerɛw sen biara wɔ wo pon ano). Freight collect anaasɛ prepaid, ka kyerɛ yɛn kɛkɛ.

Nwoma akɛseɛ tumi fa po so - yɛde amanneɛbɔ nkrataa nyinaa ma.

Nneɛma Pa a Wɔhwɛ So

100 % asɔ ahwɛ mpɛn dodow ne akenkan/kyerɛw ansa na wɔde amena. Woyi nea asɛe no fi hɔ. Yɛayɛ eyi 15+ mfe - yɛnyɛ basabasa wɔ quality ho. Asɛm biara bere a woadu hɔ → fa video a ɛyɛ ntɛm mena → yɛsesa anaasɛ yɛsan de sika ma ntɛm ara.

Nhwɛsode ahorow

Free samples bere biara. Wotua sika a wɔde mena nkutoo (gye anaasɛ fa sika no kɔ baabi foforo). Kamfo kyerɛ kɛse sɛ di kan yɛ nhwehwɛmu wɔ w’ankasa mfiri so na amma wo ti ayɛ wo yaw akyiri yi.

Adansedi nkrataa

CE ne ISO9001 a ɛwɔ hɔ - scans a wɔde kɔmaa wɔ ahyɛde a wɔahyɛ no den akyi.

Nsɛmmisa? Bisa kɛkɛ - yɛbua ntɛmntɛm na yɛma nneɛma yɛ mmerɛw!
